Fujicom多媒體設備晶振,FSX-2MS無源晶振,2016mm石英諧振器,日本富士通晶振,進口無源晶振,石英晶體諧振器,無源晶振,貼片石英晶體,2016mm水晶振動子,輕薄型晶振,四腳貼片晶振,石英晶振,SMD晶振,尺寸2.0*1.6mm,頻率范圍13.56~50MHZ,無鉛晶振,低損耗晶振,低成本晶振,高性能晶振,移動通信晶振,通信設備晶振,電信設備晶振,便攜手機晶振,GPS定位晶振.
Fujicom多媒體設備晶振,FSX-2MS無源晶振,2016mm石英諧振器特點:
超小型、貼片類型無源晶振
縫焊，陶瓷封裝無導線型
可回流
無鉛，RoHS指令兼容產品

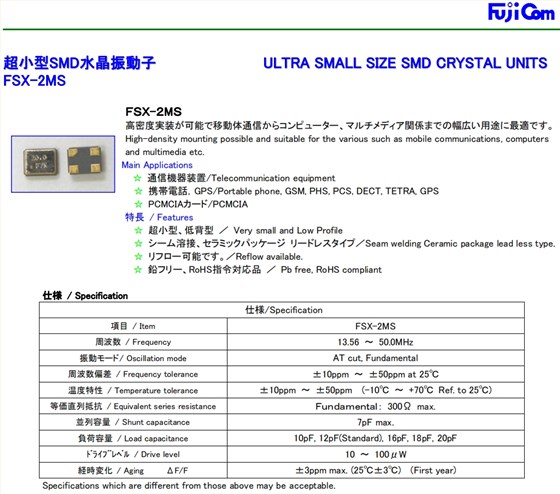

Fujicom多媒體設備晶振,FSX-2MS無源晶振,2016mm石英諧振器 參數表
| 仕様/Specification | |||||
| 項目/ Item | FSX-2MS | ||||
| 周波數/ Frequency | 13.56～50.0MHz | ||||
| 振動モード/ Oscillation mode | AT cut, Fundamental | ||||
| 周波數偏差/ Frequency tolerance | ±10ppm~±50ppm at 25℃ | ||||
| 溫度特性/ Temperature tolerance | ±10ppm~±50ppm(-10℃~+70℃ Ref. to 25℃) | ||||
| 等価直列抵抗/ Equivalent series resistance | Fundamental：300Ω max. | ||||
| 並列容量/ Shunt capacitance | 7pF max. | ||||
| 負荷容量/ Load capacitance | 10pF, 12pF(Standard), 16pF, 18pF, 20pF | ||||
| ???????????/ Drive level | 10～100μW | ||||
| 経時変化/ AgingΔF/F | ±3ppm max. (25℃±3℃)(First year) | ||||
