GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V,美國GED振蕩器,有源貼片晶振,有源晶體振蕩器,OSC貼片晶振,6035mm有源晶振,時鐘有源晶振,32M晶體振蕩器,貼片有源晶振,尺寸6.0*3.5mm,頻率32MHZ,電壓3.3V,輸出HCMOS,低老化晶振,低電壓晶振,低功耗晶振,高品質晶振,低相位晶振,測試設備晶振,智能手機晶振,數字音頻晶振,無線局域網晶振,以太網晶振,視聽設備晶振.
GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V特點:
HCMOS輸出晶體振蕩器/TTL輸出
3.3V和5.0V電源電壓
陶瓷SMD封裝

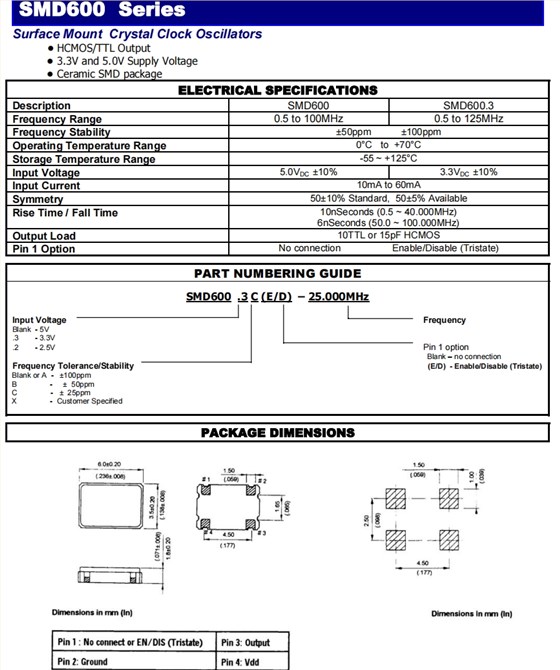

GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V 參數表
| ELECTRICAL SPECIFICATIONS | |||||
| Description | SMD600 | SMD600.3 | |||
| Frequency Range | 0.5 to 100MHz | 32MHz | |||
| Frequency Stability | ±50ppm±100ppm | ||||
| Operating Temperature Range | 0°Cto+70°C | ||||
| Storage Temperature Range | -55 ~ +125°C | ||||
| Input Voltage | 5.0VDC±10% | 3.3VDC±10% | |||
| Input Current | 10mA to 60mA | ||||
| Symmetry | 50±10% Standard,50±5% Available | ||||
| Rise Time / Fall Time |
10nSeconds (0.5 ~ 40.000MHz) 6nSeconds (50.0 ~ 100.000MHz) |
||||
| Output Load | 10TTL or 15pF HCMOS | ||||
| Pin 1 Option | No connectionEnable/Disable (Tristate) | ||||

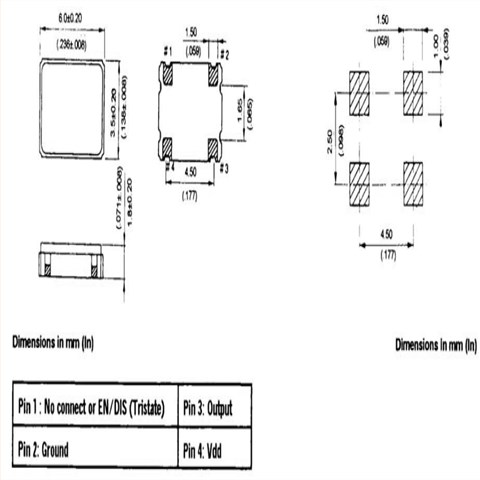

GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V 尺寸圖
