當前位置：首頁 » 臺產晶振 » 泰藝晶振 » X5HGGJNINF-100.000000,高頻晶振,臺產泰藝晶振

prevnext

X5HGGJNINF-100.000000,高頻晶振,臺產泰藝晶振

頻率為100MHz,尺寸為8.0*3.1mm

X5HGGJNINF-100.000000,高頻晶振,臺產泰藝晶振，物料編碼為X5HGGJNINF-100.000000，型號為X5系列晶振，頻率為100MHz，精度為±5ppm，負載電容為20pF，工作溫度為-55℃~125℃，尺寸為8.0*3.1mm，插件晶振，石英晶體，高頻晶振，臺產泰藝晶振，廣泛應用于mp5，mp4，無線電源，智能錄音筆等產品。

訂購熱線：0755-27839151

1XQJX

2GGCS

TY-2

X5HGGJNINF-100.000000,高頻晶振,臺產泰藝晶振

參數表
型號	X5
頻率	100MHz
精度	±5ppm
負載電容	20pF
工作溫度	-55℃-125℃
尺寸	8.0*3.1mm

3CC

TY-3

X5HGGJNINF-100.000000,高頻晶振,臺產泰藝晶振

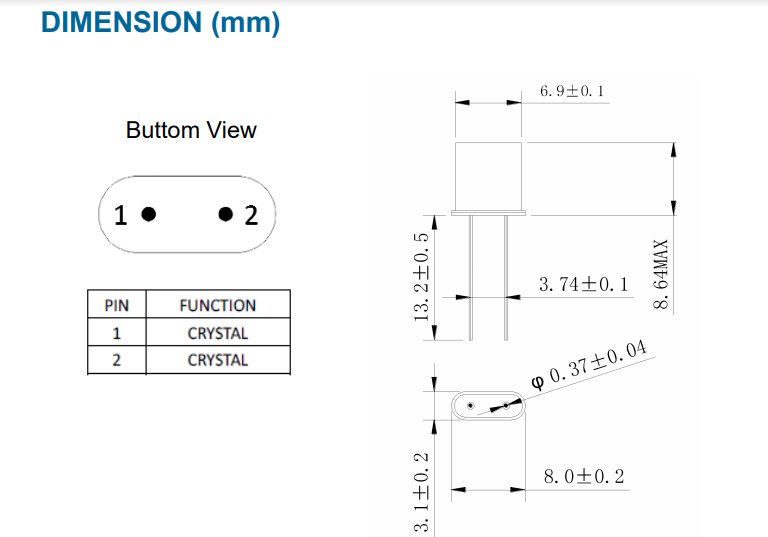

X5尺寸圖

原廠編碼	參數描述	型號	頻率	頻率穩定度	頻率容差	負載電容	工作溫度
X5HGGJNINF-100.000000	CRYSTAL 100.0000MHZ 20PF THOLE	X5	100 MHz	-	±5ppm	20pF	-55°C ~ 125°C
XSCEECNANF-8.000000	CRYSTAL 8.0000MHZ 10PF SMD	XS	冠杰電子	±30ppm	±30ppm	10pF	-20°C ~ 70°C
XSCEGCNANF-10.000000	CRYSTAL 10.0000MHZ 10PF SMD	XS	10 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
XSCGGCNANF-24.576000	CRYSTAL 24.5760MHZ 10PF SMD	XS	24.576 MHz	±50ppm	±50ppm	10pF	-20°C ~ 70°C
XSDEECNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XS	25 MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
XSDEELNANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XS	12 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
XSDEELNANF-13.560000	CRYSTAL 13.5600MHZ 12PF SMD	XS	13.56 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
XSDEELNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XS	25 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
XSDEGCNANF-16.000000	CRYSTAL 16.0000MHZ 12PF SMD	XS	16 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
XSFGGLNANF-20.000000	CRYSTAL 20.0000MHZ 16PF SMD	XS	20 MHz	±50ppm	±50ppm	16pF	-40°C ~ 85°C
XSGEECNANF-16.000000	CRYSTAL 16.0000MHZ 18PF SMD	XS	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
XSGEELNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XS	25 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
XSGEGLNANF-13.000000	CRYSTAL 13.0000MHZ 18PF SMD	XS	13 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
XSHEECNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
XSHEELNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-11.059200	CRYSTAL 11.0592MHZ 20PF SMD	XS	11.0592 MHz	±50ppm	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-12.000000	CRYSTAL 12.0000MHZ 20PF SMD	XS	12 MHz	±50ppm	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-16.000000	CRYSTAL 16.0000MHZ 20PF SMD	XS	16 MHz	±50ppm	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-24.000000	CRYSTAL 24.0000MHZ 20PF SMD	XS	24 MHz	±50ppm	±50ppm	20pF	-40°C ~ 85°C
XSDEELAANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XS	12 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
XSDEELAANF-13.560000	CRYSTAL 13.5600MHZ 12PF SMD	XS	13.56 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
XSGEECAANF-16.000000	CRYSTAL 16.0000MHZ 18PF SMD	XS	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
XSGEELAANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XS	25 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
XSHEECAANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
XSHEELAANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XSGCCLNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XS	25 MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
XSGCECNANF-8.000000	CRYSTAL 8.0000MHZ 18PF SMD	XS	8 MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
